Medium-Voltage Switchgear

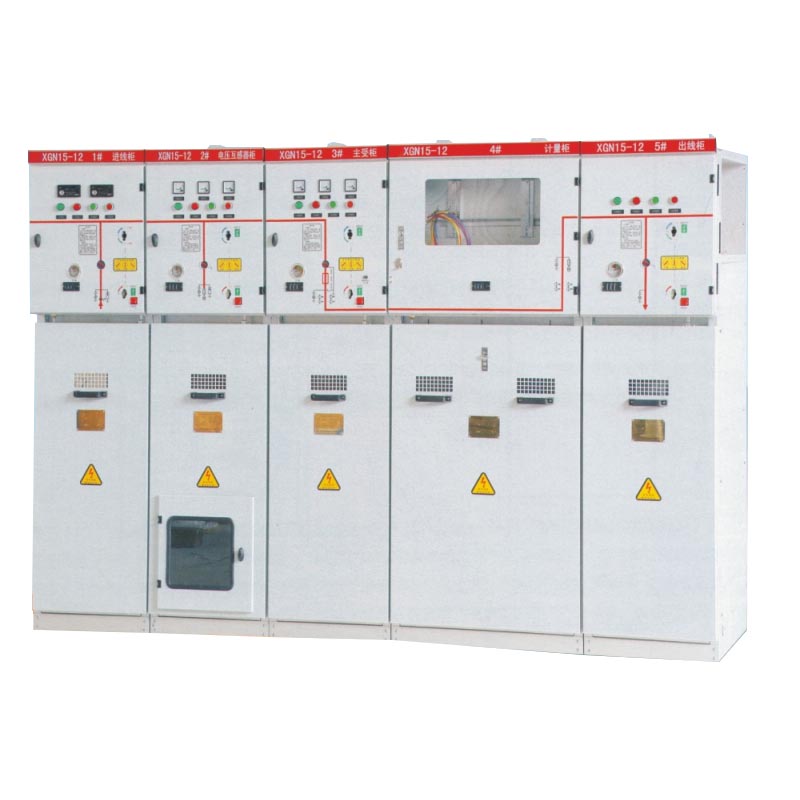

XGN15-12 12kV Ring Main Switchgear
Model XGN15-12
12 kV ring main switchgear for cable ring networks and terminal distribution. Suitable applications include secondary substations, industrial facilities, commercial buildings and urban distribution systems.
Share your rated data, quantity and project requirements.
View this model in our 2026 catalog ↗
Project configuration reviewTechnical documentation support
Product Overview
XGN15-12 AC metal-enclosed ring main switchgear is used in industrial and civil cable ring networks and power supply terminals. It is commonly used for industrial and civil cable ring networks and small substations and switch stations, with the final selection based on rated data, drawings, and site conditions.
EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers can request configuration review for ring main switchgear. Please send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and any project standard requirements for quotation.

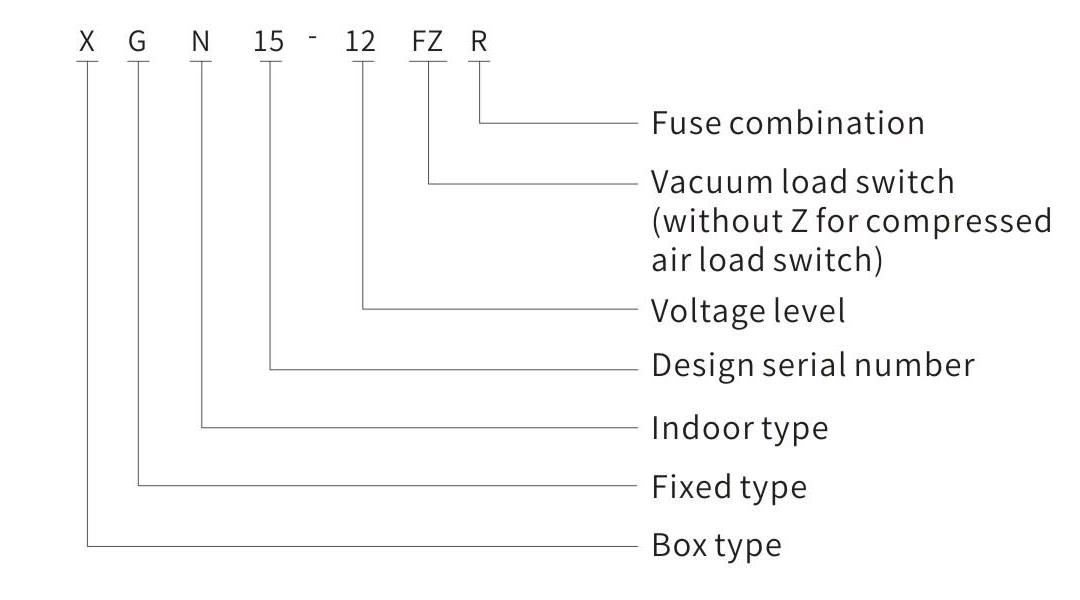

Model and Meaning
- XGN: indoor fixed box-type ring main switchgear
- 15: design serial number
- 12: rated-voltage class
- Confirm whether the ordered configuration uses a load switch, vacuum load switch, or fuse combination
Technical Specifications
XGN15-12 Technical Parameter Table
Review the XGN15-12 values, units, rated data, and project requirements before quotation.
| Name | Unit | Parameters |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of main bus | A | 630 |
| Rated short-time withstand current / duration of main circuit and grounding circuit | kA/s | 20/3; 20/2 |
| Rated peak withstand current of main circuit and grounding circuit | kA | 50 |
| Rated short-circuit closing current of main circuit and grounding circuit | kA | 50 |
| Number of load switch breaking times at full capacity | Time | 100 |
| Fuse breaking current | kA | 31.5 / 40 / 50 |
| Mechanical life | Time | 2000 |
| 1 min power frequency withstand voltage to ground / isolating break | kV | 42 / 48 |
| Lightning impulse withstand voltage to ground / isolating break | kV | 75 / 85 |
| 1 min power frequency withstand voltage of secondary circuit | kV | 2 |

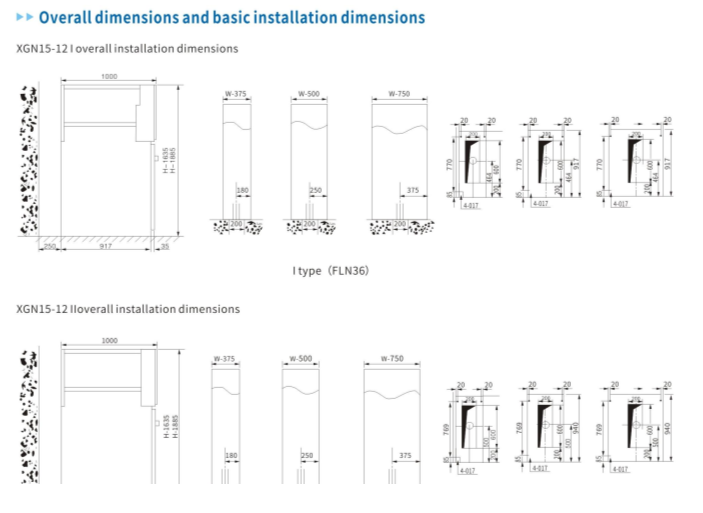

Installation Dimensions / Drawing
Applications
XGN15-12 is mainly selected for industrial and civil cable ring networks and small substations and switch stations. The final application should match the confirmed ring main switchgear, rated data, and site installation conditions.
- Industrial and civil cable ring networks
- Small substations and switch stations
- Urban and infrastructure electrical distribution projects
Ordering Instructions / Information Required for Quotation
ForXGN15-12, send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected ring main switchgear and project drawing.
ORDERING INSTRUCTIONS
- Confirm the required ring-main-unit scheme, rated voltage, rated current, and ordered circuit arrangement.
- State special environmental conditions when the project exceeds the normal technical document range.
- Confirm any other project-specific technical requirements before ordering.
