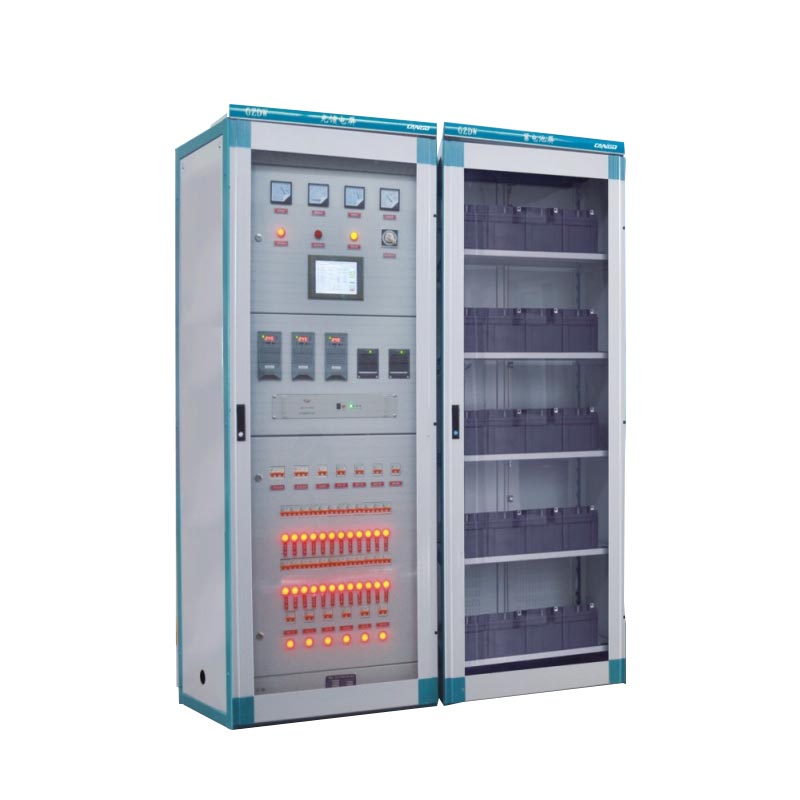

GZDW DC Power Supply Cabinet
Model GZDW
A microcomputer-controlled DC power supply cabinet for switchgear operation, relay protection, automatic control and signaling in power plants and substations. Discuss the required DC voltage, load, battery configuration and monitoring functions.
Share your rated data, quantity and project requirements.
View this model in our 2026 catalog ↗
Project configuration reviewTechnical documentation support
Product Overview
GZDW DC power supply cabinet is used as a DC supply for high-voltage switch opening and closing, relay protection, automatic control, emergency lighting, lighting, and audio. It is commonly used for power plants and substations and relay protection and automatic control systems, with the final selection based on rated data, drawings, and site conditions.
utilities, EPC companies, substation contractors, industrial plant engineers, and electrical panel buyers can request configuration review for dc power supply cabinet. Please send DC output voltage, DC output current, battery capacity, charger cabinet layout, feed cabinet layout, battery cabinet layout, outline dimension, cabinet color, and wiring diagram, quantity, destination, and any project standard requirements for quotation.
Model and Meaning

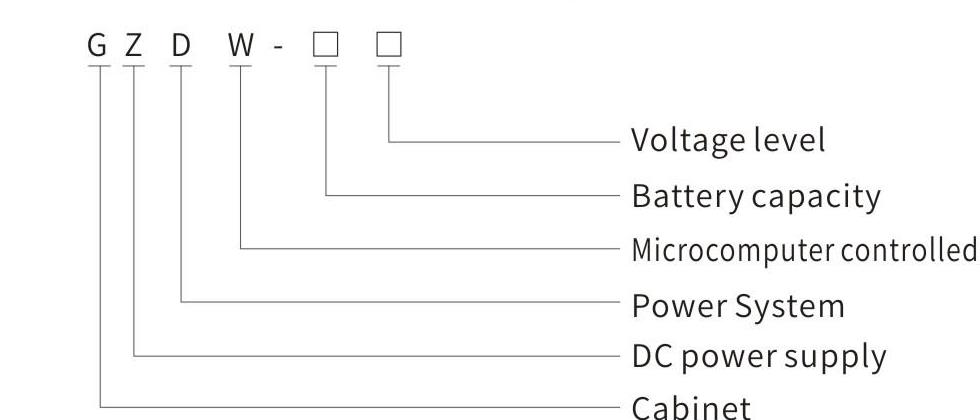

- GZDW: microcomputer-controlled power-system DC power supply cabinet
- Confirm the selected voltage level and battery capacity
Technical Specifications
GZDW Technical Parameter Table
Review the GZDW rated data, selected configuration, and project requirements before quotation.
| Group | Item | Unit | Parameter |
|---|---|---|---|
| Input power supply voltage | V, Hz | Three-phase AC 380 +/-10%, 50 Hz +/-5% | |
| Rated output DC voltage | V | 24 / 48 / 110 / 220 | |
| Rated output DC current | A | 5 / 8 / 10 / 15 / 20 / 30 / 40 / 50 / 80 / 100 / 150 / 200 / 250 / 300 / 350 / 400 | |
| Rated capacity of battery | Ah | 10 / 20 / 38 / 40 / 50 / 60 / 65 / 80 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 800 / 1000 | |
| Output DC current regulation range | of rated value | ||
| Voltage stabilization accuracy | < +/-0.5% | ||
| Stabilized current precision | < +/-0.5% | ||
| Ripple factor | < 0.1% | ||
| Machine noise | dB | < 55 | |
| Main transformer temperature rise | degC | < 70 | |
| Way of working | Continuous work | ||
| Efficiency | >90% | ||
| Protection grade | IP20 / IP30 |

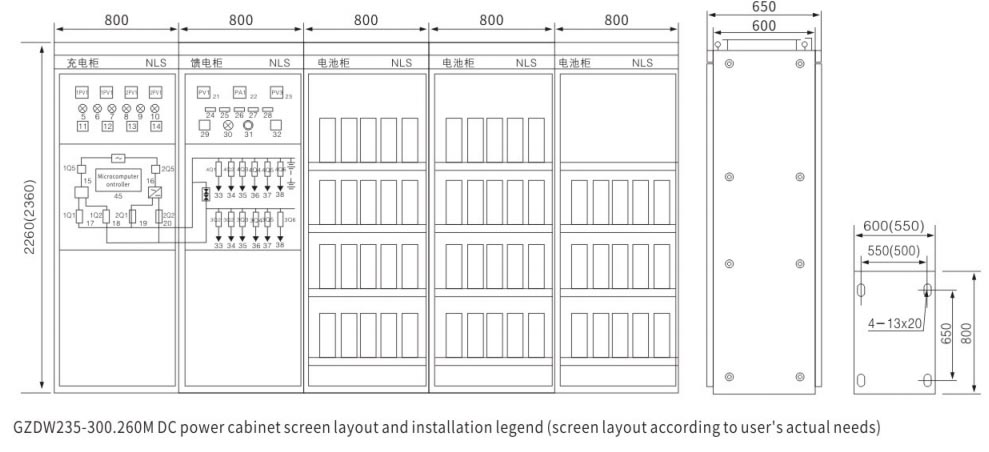

Installation Dimensions / Drawing
Applications
GZDW is mainly selected for power plants and substations and relay protection and automatic control systems. The final application should match the confirmed dc power supply cabinet, rated data, and site installation conditions.
- Power plants and substations
- Relay protection and automatic control systems
- Industrial projects requiring DC power supply cabinets
Ordering Instructions / Information Required for Quotation
ForGZDW, send DC output voltage, DC output current, battery capacity, charger cabinet layout, feed cabinet layout, battery cabinet layout, outline dimension, cabinet color, and wiring diagram, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected dc power supply cabinet and project drawing.
ORDERING INSTRUCTIONS
- Provide the product model and specifications.
- Confirm the required technical parameters, main electrical appliances, and system configuration.
- State the cabinet outline dimensions, cabinet color, quantity, and relevant technical-agreement requirements.
