Power Quality & Reactive Power Compensation
Compensation and supporting equipment selected around measured electrical conditions.
DISCUSS THIS APPLICATION ↗
Where the equipment fits
Power-quality equipment should be selected from site measurements and load characteristics. Review the power factor, voltage and harmonic profile before specifying reactive power compensation or other available equipment. A catalog product alone does not establish the correct compensation capacity.
Typical equipment arrangement
- Site measurements
- Load & harmonic assessment
- Compensation equipment selection
- Connection to the distribution bus
Conceptual arrangement only, not a construction or protection drawing. Equipment sequence and scope depend on the project.

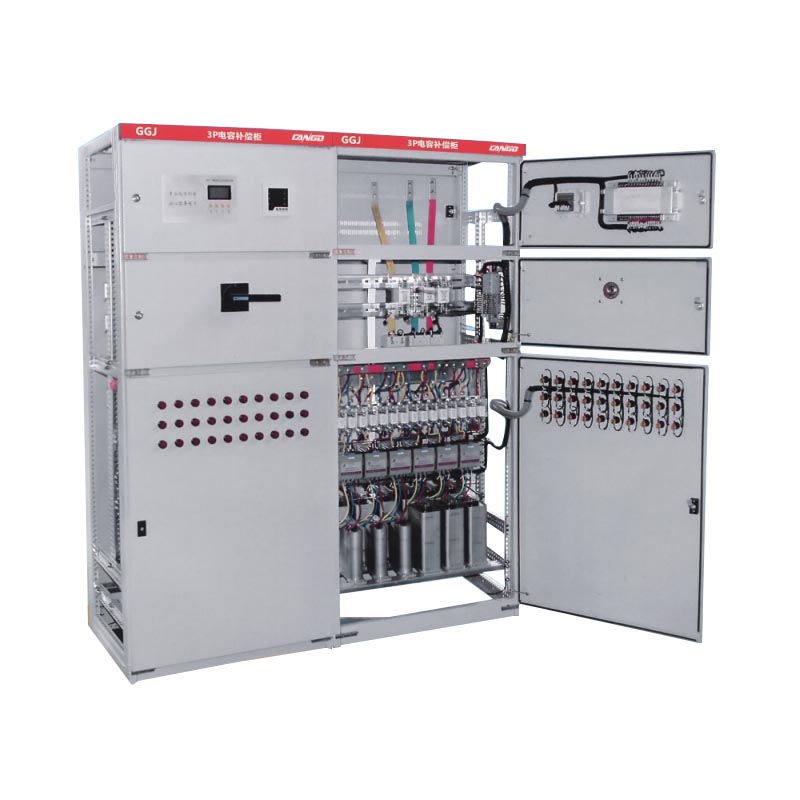

Equipment to consider
What to confirm before selection
Send the available drawings and specifications with your inquiry.
- Measured power factor and load variation
- Harmonic spectrum and existing capacitor equipment
- Required compensation capacity and switching steps
- Ventilation, protection and monitoring interfaces
Let’s review your equipment scope
Share your application, rated data, quantity and destination. CANGO can discuss the relevant equipment and configuration with your team.
