XL-21 Low-Voltage Distribution Cabinet
Model XL-21

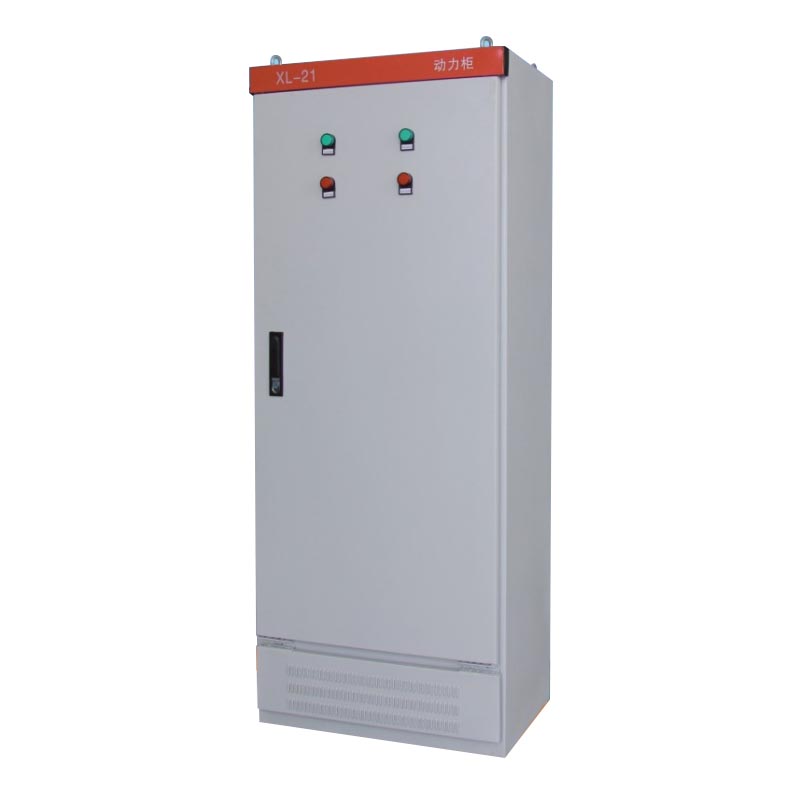

An indoor low-voltage distribution cabinet for power and lighting circuits. Its enclosed, front-access arrangement supports installation against a wall, with switching, indication and control components matched to the selected circuit scheme.
Share your rated data, quantity and project requirements.
View this model in our 2026 catalog ↗
Project configuration reviewTechnical documentation support
Product Overview
XL-21 low-voltage power distribution cabinet is used for power or lighting distribution in power plants and industrial or mining projects. It is commonly used for power distribution and lighting distribution, with the final selection based on rated data, drawings, and site conditions.
panel builders, EPC companies, electrical contractors, industrial users, and overseas distributors can request configuration review for low voltage distribution cabinet. Please send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and any project standard requirements for quotation.

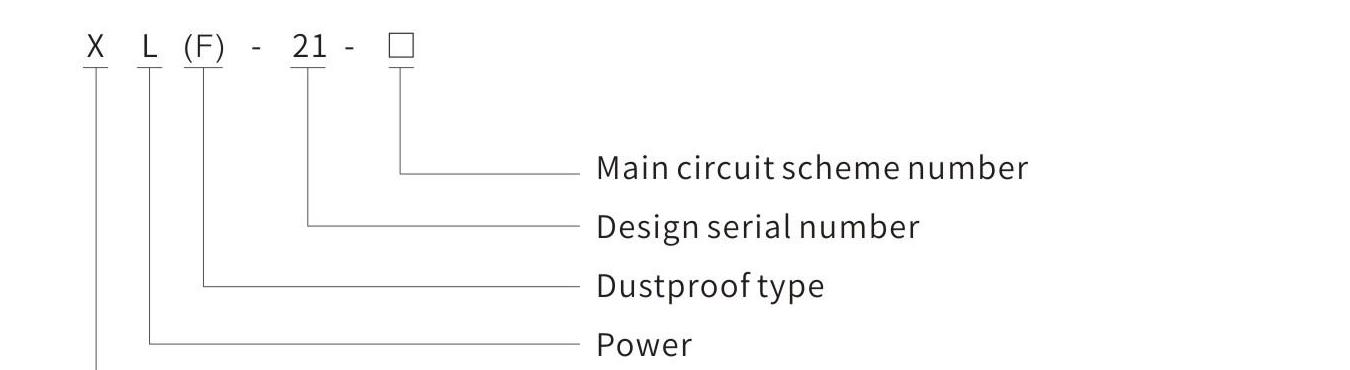

Model and Meaning
Technical Specifications
XL-21 Technical Parameter Table
Review the XL-21 rated data, selected configuration, and project requirements before quotation.
| Group | Item | Unit | Parameter |
|---|---|---|---|
| Main circuit rated voltage | AC 380 V | ||
| Auxiliary circuit rated voltage | AC 220 V / 380 V | ||
| Rated frequency | Hz | 50 | |
| Rated insulation voltage | V | 630 | |
| Rated current | A | 800 |

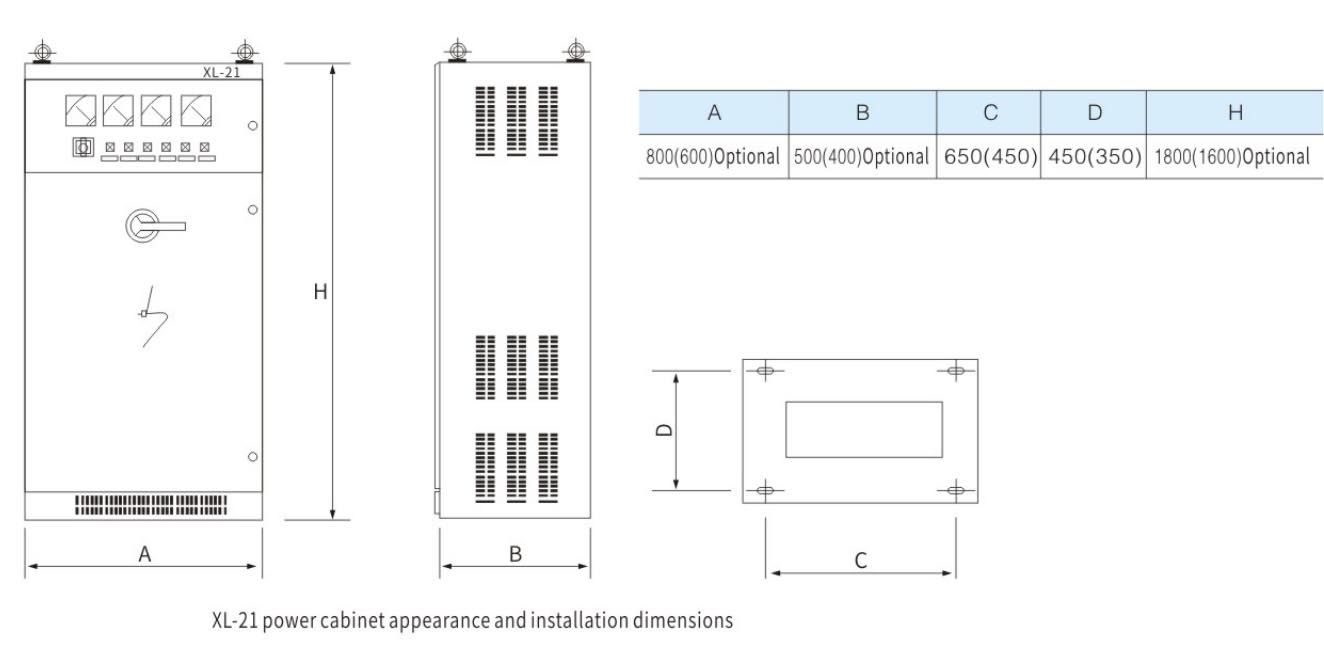

Installation Dimensions / Drawing
Applications
XL-21 is mainly selected for power distribution and lighting distribution. The final application should match the confirmed low voltage distribution cabinet, rated data, and site installation conditions.
- Power distribution
- Lighting distribution
- Indoor wall-mounted industrial electrical projects
Ordering Instructions / Information Required for Quotation
ForXL-21, send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected low voltage distribution cabinet and project drawing.
ORDERING INSTRUCTIONS
- Provide the full product model, including main-circuit and auxiliary-circuit scheme numbers.
- Provide the main-circuit system diagram, cabinet arrangement, and auxiliary-circuit electrical schematic.
- Provide the cabinet component list, main-bus specifications, cabinet color, enclosure dimensions, and any special requirements.
